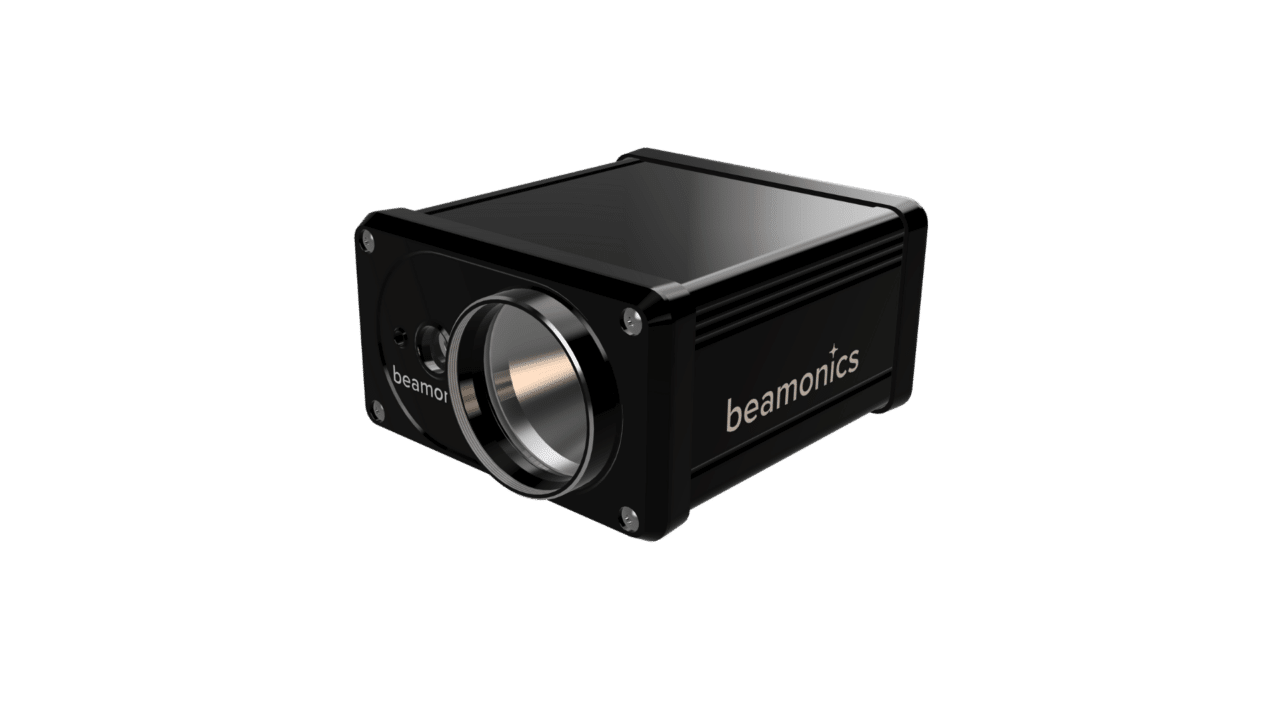

Remote standoff gas analyzer
BeamSight®
Standoff gas analysis from a safe distance, for fixed installations or battery-powered portable use.
- Configuration
- Standoff, remote
- Measurement
- ppm·m
- Detection distance
- 30 m, up to 100 m with reflector
- Weight
- 0.7 kg fixed, 1.0 kg battery
- Battery life
- 5 h
- Protection
- IP44
Specifications
BeamSight is a remote gas analyzer for true standoff detection. It analyzes gas concentrations from a distance, with no contact with the gas, in a fixed or a battery-powered portable configuration.
The true remote configuration makes commissioning alignment-free, with no long cables and no complex mechanical or opto-mechanical constructions. A single system can monitor a large area and delivers measurement results at a safe distance from potentially hazardous gases.
BeamSight uses Tunable Diode Laser Absorption Spectroscopy (TDLAS) on the Beamonics proprietary remote TDLAS platform, and is inherently calibration-free and maintenance-free. Sensor poisoning does not affect the measurement, and BeamSight measures continuously from very low background atmospheric levels up to saturation at 100 vol%.
Sensitivity is high enough to analyze background atmospheric concentrations of several gases, such as CH₄ and CO₂. Target gases include CH₄, CO, CO₂, H₂S, HF, C₂H₂, NH₃ and HCl, and the precision for each under standard test conditions is listed under Examples of gases. BeamSight reports path-integrated concentration in ppm·m, because the path length is variable and unknown.

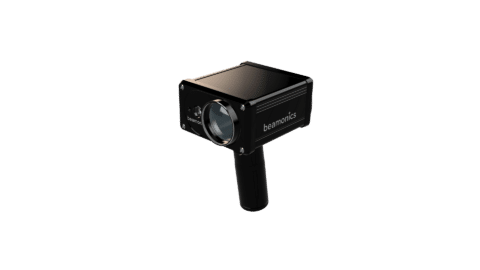

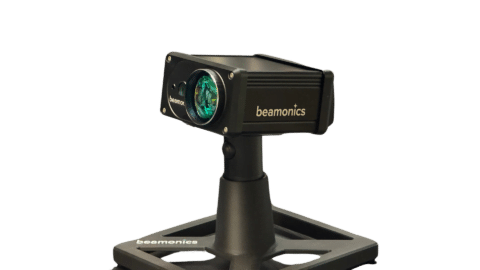

The fixed configuration suits permanent installations. The battery-powered configuration runs for 5 h and suits portable use, including rover- and drone-mounted setups. BeamSight is delivered integration-ready, with USB, UART and I²C interfaces.
- Remote open-path gas analyzer for standoff analysis
- Real-time quantification of gases
- Portable or stationary configurations
- Operates without reflector to 30 m, and up to 100 m with reflector
- Integrated battery or external power
- Lightweight: 0.7 kg fixed, 1.0 kg battery-powered
BeamSight suits applications where gas needs to be measured from a distance, including:
- Monitoring a large area from a single system
- Gas measurement at a safe distance from potentially hazardous gases
- Fenceline monitoring and area scanning
- Rover- and drone-mounted gas surveys
- Portable, battery-powered gas analysis
- Fixed installations
- Measuring background atmospheric concentrations of gases such as CH₄ and CO₂
| Gas | Precision, ppm·mnote a |
|---|---|
| HFHydrogen fluoride | 0.001 |
| COCarbon monoxide | 0.3 |
| CO₂Carbon dioxide | 0.8 |
| H₂SHydrogen sulfide | 1 |
| CH₄Methane | 0.3 |
| C₂H₂Acetylene | 0.1 |
| NH₃Ammonia | 2 |
| HClHydrogen chloride | 0.1 |
Note a: Under standard test conditions: R = 10 m, t = 0.5 s, P = 1 atm, T = 300 K, largest of 1% relative and specified precision.
| Detection distance | R | 0.2 m | 30 m | 100 m with reflector |
|---|---|---|---|---|
| External supply voltage | Vin | 10 VDC | 12 VDC | 14 VDC |
| Power consumption | P | 4.0 Wnote 1 | 4.6 Wnote 1 | 5.0 Wnote 1 |
| Weight, fixed installation | mf | Not specified | 0.7 kg | Not specified |
| Size, fixed installation (l × w × h) | Sf | 147 mm × 111 mm × 84 mm | ||
| Weight, battery-powered | mb | Not specified | 1.0 kg | Not specified |
| Size, battery-powered (l × w × h) | Sb | 147 mm × 111 mm × 184 mm | ||
| Operating battery life | tb | Not specified | 5 h | Not specified |
Note 1: Depends on whether the display is fitted. 100 mA laser diode under ambient conditions.
| Interface | Description |
|---|---|
| USB | Mini USB / USB-C |
| Expansion connector | I²C, UART, GPIO |
| Power | DC plug or board-to-board connector |

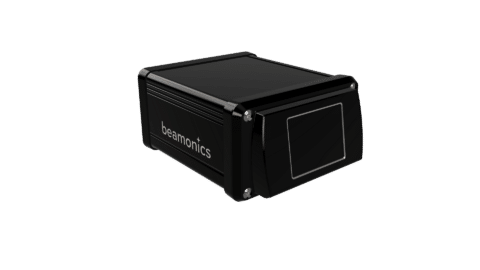

| Display | Resistive touch |
| Operating temperature | Top | −5 °C | Not specified | 45 °C |
|---|---|---|---|---|
| Humidity (non-condensing) | Not specified | 40% at 50 °C / 80% at 30 °C | ||
| IP classification | Not specified | IP44 | ||
| Analysis laser (IR) | Not specified | Laser Class 1 | ||
| Aim laser (visible) | Not specified | Laser Class 3R | ||
| CE-marked EU directives | Not specified | 2014/35/EU, 2012/19/EU, 2011/65/EU, EN61000-6-2:2005, EN61000-6-2:2019, EN61000-6-4:2007, EN61000-6-4:2019 | ||
