In Brief
Electrochemical (EC) sensors and tunable diode laser absorption spectroscopy (TDLAS) analyzers are both used for toxic and process gas detection in industrial environments. EC sensors are inexpensive, compact, and widely available. TDLAS analyzers cost more per unit but eliminate the consumable chemistry that limits EC sensor life, and they provide continuous self-diagnostics that EC sensors cannot replicate. The choice between them depends on the chemical environment, required response time, maintenance access, and the consequences of an undetected measurement failure.
Two measurement principles, different vulnerabilities

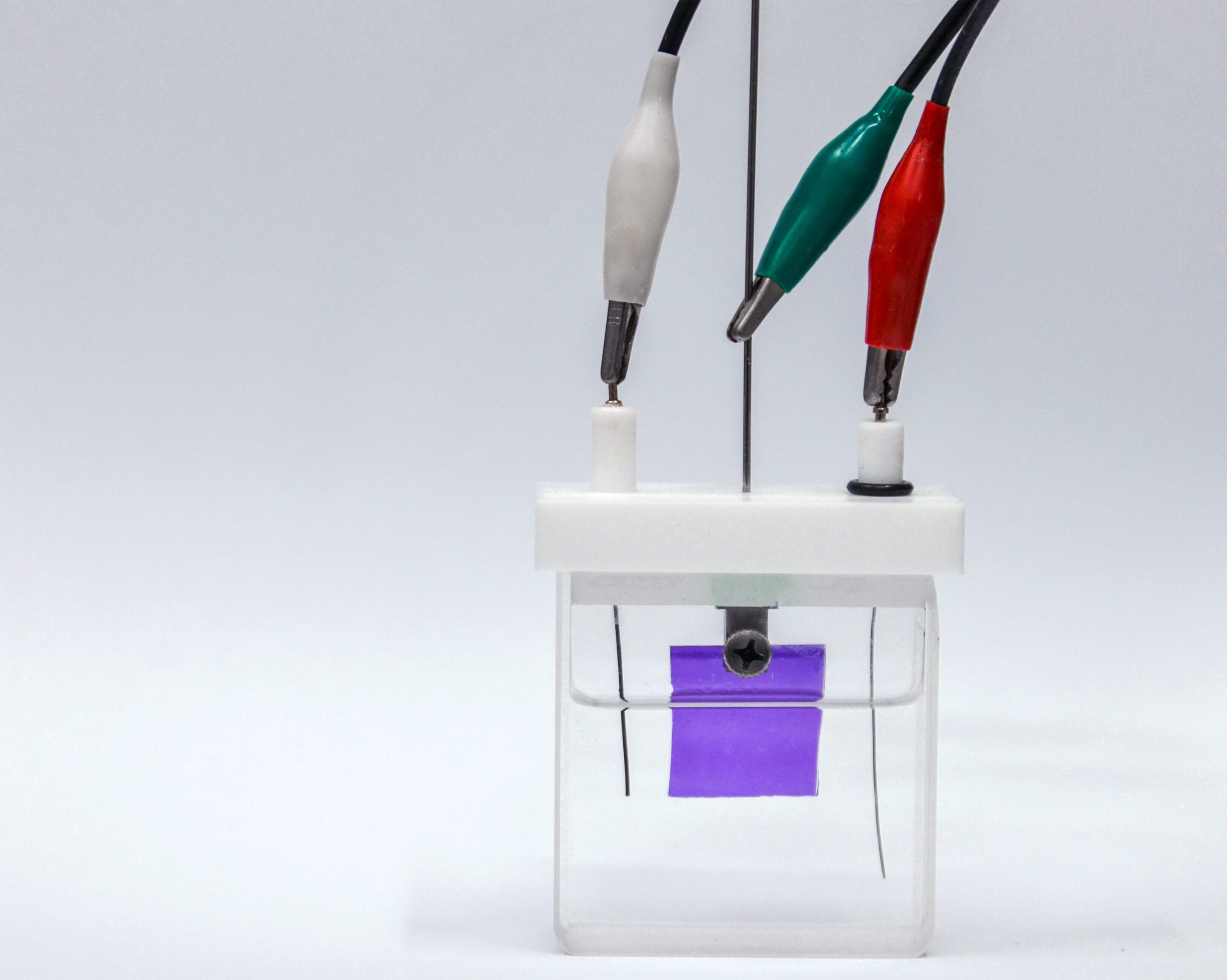

An electrochemical cell detects gas through a chemical reaction. The target gas diffuses through a membrane, reacts at an electrode surface in the presence of a liquid electrolyte, and generates a small current proportional to concentration. The accuracy of the reading depends on the electrode and electrolyte remaining in a stable chemical state. Over time, electrolytes dry out, electrodes age, and compounds that interfere with the reaction distort or suppress the output. The sensor has no internal way to distinguish a genuine low reading from a degraded response.
TDLAS operates on an entirely different physical basis. A narrowband semiconductor laser is scanned across a wavelength range that corresponds to a known absorption line of the target gas molecule. As light travels through the gas sample, molecules absorb a fraction of it at that specific wavelength. The amount of absorption is a fixed property of the molecule’s quantum structure, determined by well-characterized spectroscopic constants. It does not depend on any consumable material remaining in a particular state, and it does not change over time as long as the optical path is clear.
The practical consequence is that a TDLAS measurement is self-referencing. The instrument continuously verifies its own optical signal against the known absorption line and can flag degradation explicitly. An EC sensor provides a current, and there is no built-in mechanism to confirm whether that current corresponds to an accurate gas reading or to a sensor that has quietly lost sensitivity.
Cross-sensitivity and sensor poisoning
EC sensors are susceptible to two related problems. Cross-sensitivity occurs when a species other than the target gas triggers the electrode reaction, producing a spurious reading. A CO sensor exposed to hydrogen, for example, may report elevated CO when none is present. The severity depends on the sensor design and the specific interferent, but in process environments where multiple gases coexist, predicting the combined effect on a reading is difficult.
Sensor poisoning is more damaging and often irreversible. Certain compounds react with the electrode or contaminate the electrolyte in ways that permanently reduce sensitivity. Silicones, H₂S at high concentrations, HF, lead compounds, and various solvent vapors are well-documented poisons for common EC sensor types. A poisoned sensor may continue to produce output, but at reduced sensitivity, meaning it will under-report a real concentration. It will not announce this. The reading continues to look like a reading.
Careful line selection is an inherent part of the Beamonics design process, and the analyzers as such offer little to no cross-interference. TDLAS measures a specific molecular absorption line and is unaffected by electrode chemistry. Cross-interference in the optical sense, where another gas absorbs at a nearby wavelength, is characterized during instrument design and managed through selection of absorption lines and signal processing. For instruments targeting common industrial gases such as CO, O₂, CH₄, H₂S, NH₃, and HF, cross-interference from typical background species is negligible.
Response time and event capture
EC sensors depend on gas diffusion through a membrane to the electrode surface, which introduces a physical delay. Typical T90 values, the time to reach 90% of the final reading, range from 30 seconds to two minutes. A process release that dissipates in under a minute may be under-reported or missed entirely.
TDLAS is a real-time technique with practically no response delay. The measurement is optical and instantaneous: the instrument reads at the spectroscopy rate, and a short-duration gas event that would go unresolved on an EC sensor is a fully captured data point on a TDLAS analyzer.
The difference in startup behavior follows a similar pattern. An EC sensor requires minutes to hours to stabilize after power-up or sensor replacement while the electrolyte equilibrates and the electrode reaches a steady state. A Beamonics TDLAS analyzer reaches measurement state within seconds of power-up. There is no chemical conditioning step.
Calibration and drift
EC sensors drift as the electrode and electrolyte age. The relationship between gas concentration and output current shifts gradually, and the direction and rate of the shift are not predictable from the instrument’s own output. Most regulatory frameworks require monthly or quarterly bump tests and periodic span calibrations to check for and correct this drift. Sensors exposed to poisons or extreme conditions may need more frequent attention.
Beamonics TDLAS analyzers are factory-calibrated against known molecular absorption parameters and reference gases. Because the measurement references a physical constant rather than a chemical equilibrium, the calibration does not drift between checks. Verification is handled through the built-in self-referencing capability and, where required by site procedures, periodic functional tests with a reference gas. Routine field span calibration is not required.
Sensor lifespan and maintenance burden
EC sensing elements have a finite operating life, typically 1 to 3 years depending on the gas, exposure history, and environmental conditions. Replacement involves removing the spent sensor, installing and commissioning a new one, and confirming correct operation before returning the measurement point to service. Between replacements, the sensor requires filter changes, electrolyte replenishment or cartridge swaps, and scheduled bump tests. Unplanned failures become more likely under sustained exposure to solvents, silicones, or sulfur species.
Laser modules and photodetectors in a Beamonics TDLAS analyzer are solid-state components with expected lifetimes in the range of ten years when operated within specifications. There are no consumable chemistry elements. Beamonics instruments can handle transmission down to very low levels thanks to the proprietary platform, allowing processes to run uninterrupted without regular cleaning and re-calibration.
Over a ten-year installation period, the cumulative cost of EC sensor replacements, bump test consumables, calibration gas cylinders, and maintenance labor adds up. For multi-point installations, the difference in lifecycle cost between the two technologies can be substantial, even though the per-unit capital cost of an EC sensor is lower.
Diagnostics and failure transparency
This may be the most important operational difference between the two technologies.
A Beamonics TDLAS analyzer continuously monitors its optical power, detector signal levels, and internal reference values. If the signal degrades below a reliable measurement threshold, the instrument reports a fault. The operator knows the measurement is unavailable. No false gas reading is generated. Because the technology is built on a self-referencing method, the analyzer will flag for service and intervention before issues become critical.
An EC sensor has no equivalent continuous self-check. A sensor that has been poisoned, has depleted electrolyte, or has reached end of life will typically continue to produce some output current. That current may not correspond to actual gas concentration, but the sensor will not flag itself as unreliable. Detecting a degraded EC sensor requires deliberate testing: a bump test, a span check, or comparison against a known reference. If testing is not performed on schedule, or if degradation occurs between tests, the sensor may be providing misleading data without any visible indication.
For safety-critical gas monitoring, a system that fails to a known fault state is easier to manage than one that fails silently.
Where each technology is appropriate
EC sensors remain a reasonable choice in several contexts: personal portable gas detectors where size, weight, and battery life are the primary constraints; area monitoring in clean, non-condensing environments where monthly maintenance is already part of routine operations; and applications where the target gas is not corrosive to electrode materials and no known sensor poisons are present in the atmosphere.
TDLAS is the more defensible choice where the process environment contains compounds that poison EC sensors, where near-instantaneous response is required for alarm or control purposes, where maintenance access is difficult or infrequent, where continuous diagnostics and explicit fault reporting are necessary, or where the cost of an undetected measurement failure is high.
Comparison summary
| Criterion | Beamonics TDLAS | Electrochemical cell |
|---|---|---|
| Detection sensitivity | ppb to ppm, gas-dependent | ppm typical; ppb possible with optimized designs |
| Response time | Real-time optical readout, no diffusion delay | 30 to 120 s typical (T90) |
| Cross-sensitivity | Little to none | Present; varies by sensor and interferent |
| Sensor poisoning | Not applicable | Susceptible to silicones, H₂S, HF, solvents |
| Warm-up / restart | ~5 s | Minutes to hours |
| Calibration | Factory-calibrated; no routine field span | Monthly/quarterly bump tests and span calibration |
| Maintenance | No consumables; proprietary platform handles low transmission | Recurring sensor and filter replacements |
| Sensor lifespan | ~10 years for optics | 1 to 3 years typical |
| Drift | Negligible; self-referencing | Accumulates between calibrations |
| Fail-safe diagnostics | Continuous self-check; explicit fault on signal loss | No continuous self-check; degradation may go undetected |
| Portability | Fixed or battery-powered portable configurations | Highly portable; standard for personal detectors |
Closing Remark
The case for EC sensors is strongest where simplicity, low unit cost, and portability are the governing constraints, and where the chemical environment is clean enough that sensor poisoning and cross-sensitivity are not significant concerns. The case for Beamonics TDLAS is strongest where the measurement needs to be trustworthy over years of operation in a chemically complex environment, and where the cost of a missed event or silent sensor degradation is not acceptable.
